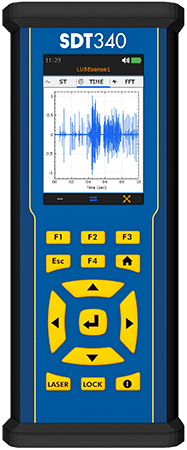

The SDT340 is the perfect platform for advanced Asset Health Evaluation by means of Ultrasound and Vibration synergy. The SDT340 offers an unbeatable performance level boosted by a high sample rate, a long acquisition time and supported by a wellscaled 4Gb data memory. The device benefits from the innovative ultrasound SDT FocUS Mode for an unparalleled impact detection of bearing and gearing faults. It incorporates the tools to conduct on-field first level diagnosis.

General
Input interface	2 channels via 7 pole LEMO connector
Display	Full color TFT 3.5” screen 320x480. Active area: width 48.96 mm (1.93”) x height 73.44 mm (2.89”)
Measuring frequency range	Up to 100 kHz
Input type	Voltage
Amplification	6 stages of + 10 dB
Max. sampling frequency	256 kHz/ksps
ADC Resolution	16 bits
System features
CPU	400MHz (ARM9)
RAM	256 MB
Available memory	6.5 GB
Database	SQLite
Cumulated recording	~30 hours at 32 kHz ~15 hours at 64 kHz ~7 hours at 128 kHz ~3.5 hours at 256 kHz
Max acquisition time per recording	600 seconds at 32 kHz 300 seconds at 64 kHz 150 seconds at 128 kHz 75 seconds at 256 kHz
Bluetooth
Type	Dual mode for data and audio streaming
Frequency band	2.4 GHz
Temperature module (on-board)
Type	High precision non-contact infrared thermometer
Measuring temperature range	-70 to +380 °C (-94 to +716 °F)
Accuracy	±0.5 °C
Rotational speed module (on-board)
Type	Optical sensor
Measuring range	~10 to 99 999 RPM
