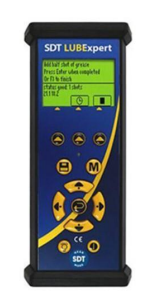

LUBExpert Ultrasound Lubrication Analyser
General | |
Operable with external sensor | SDT LUBESense1 only |
Software compatibility | Ultranalysis Suite 3 |
Built-in sensors | Infrared temperature Laser tachometer |
Display | Graphic backlighted LCD (128 x 64) |
System features | |
CPU | ARM9 |
CPU clock | 400 MHz |
Internal memory | DDR2, 256 Mb |
Data memory | 256 Mb |
Signal processing | |
ADC Resolution | 16 bits |
Raw sampling frequency | 256 kHz |
Signal amplification | Steps of 10 dB |
Ultrasound measurement | |
Typical measuring range | -13 to 99.9 dBµV |
Ultrasound bandwidth | 36.1 to 40.7 kHz (sensor recognition) |
Filter | 6th order Butterworth |
Residual audible bandwidth | 250 Hz to 2.5 kHz |
Temperature module (on-board) | |
Type | High precision non-contact infrared thermometer |
Measuring temperature range | -70 to +380 °C (-94 to +716 °F) |
Accuracy | ±0.5 °C |
Rotational speed module (on-board) | |
Type | Optical sensor |
Measuring range | ~10 to 99 999 RPM |
