ROTALIGN Touch EX

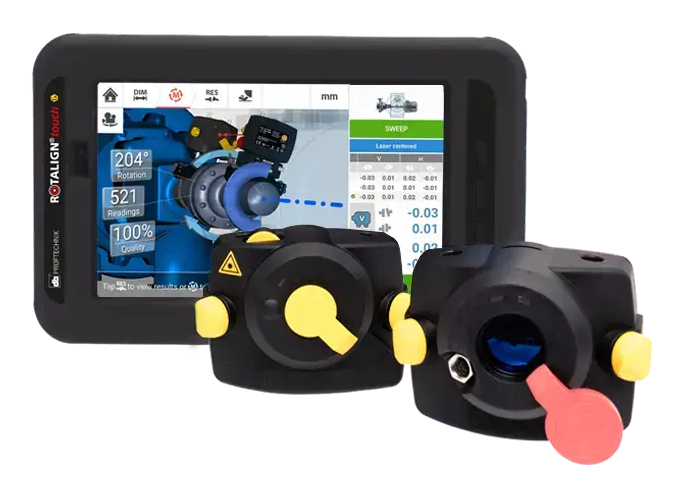

ROTALIGN touch EX is Zone 1 ATEX/IECEX certified. Packed with user-friendly alignment features unique to PRUFTECHNIK, the ROTALIGN touch EX shortens the measurement time with:
Have instant access to the critical data you need with full mobile connectivity. The ROTALIGN touch EX tablet is Wi-Fi enabled and equipped with a Bluetooth module, an integrated camera, and an RFID reader for automatic machine identification and error-free two-way transfer of asset data.
Direct communication between the tablet and the ALIGNMENT RELIABILITY CENTER 4.0 PC software allows specialists to archive, analyze, and process alignment data to improve asset performance improvement and reliability.
ROTALIGN® touch device
CPU:
Processor: 1.0 GHz quad core ARM® Cortex-A9
Memory: 2 GB RAM, 1 GB Internal Flash, 32 GB SD-Card Memory
Display:
Technology: Projective capacitive multi-touch screen
Type: Transmissive (sunlight-readable) backlit TFT color graphic display Optically bonded, protective industrial display, integrated light sensor for automated adjustment of the brightness to the display
Resolution: 800 x 480 Pixel
Dimensions: 178 mm (7”) diagonal
LED indicators: 3 LEDs for battery status, 1 LED for WiFi communication
Power supply
Operating time: 12 hours typical use (based upon an operating cycle of 25% measurement, 25% computation, 50% ‘sleep’ mode)
Battery: Lithium-ion rechargeable battery 3.6 V / 80 Wh
AC adapter/charger: 12 V / 36 W; standard barrel connector (5.5 x 2.1 x 11 mm)
External interface:
sensALIGN® 7 sensor
CPU:
Type: 1.0 GHz quad core ARM® Cortex-A9
LED indicators:
4 LEDs for laser adjustment
1 LED for Bluetooth® communication 1 LED for battery status
Power supply: Operating time 12 hours typical use
Battery: Lithium Polymer rechargeable battery 3.7 V / 1.6 Ah 6 Wh
Measurement range: Unlimited, dynamically extendible
Measurement resolution: 1 μm
Measurement error: < 1.0%
Inclinometer resolution: 0.1°
Inclinometer error: ± 0.25% full scale
Vibration measurement: mm/s, RMS, 10Hz to 1kHz, 0 mm/s – 5000/f mm/s² (f in Hertz [1/s])
External interface: Integrated Bluetooth® Class 1 wireless communication, RS232, RS485, I-Data
sensALIGN® 7 laser
Type: Semiconductor laser
LED indicators: 1 LED for laser transmission 1 LED for battery status
Power supply:
Operating time: 70 hours continuous use
Battery:
Lithium Polymer rechargeable battery: 3.7 V / 1.6 Ah
6 Wh AC adapter/charger: 5 V / 3 A
Beam power: < 1mW
Beam divergence: 0.3 mrad
Wavelength: 630 – 680 nm (red, visible)
Laser class:
Class 2 according to IEC 60825-1:2014. The laser complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007
Inclinometer resolution: 0.1°
Inclinometer error: ± 0.25% full scale
